A Perfect Gentleman.

The magical combination of tremolo and reverb is the earliest example of a perfect guitar effects marriage. First pioneered within historic amplifiers of the 1960s, this harmonious coexistence has made its way onto countless records and performances — from early surf, swampy bayou blues, spaghetti westerns and film noir soundtracks, to modern day indie rock. As music moves forward, guitarists continue rediscovering the inspiration provided by this perfect pair.

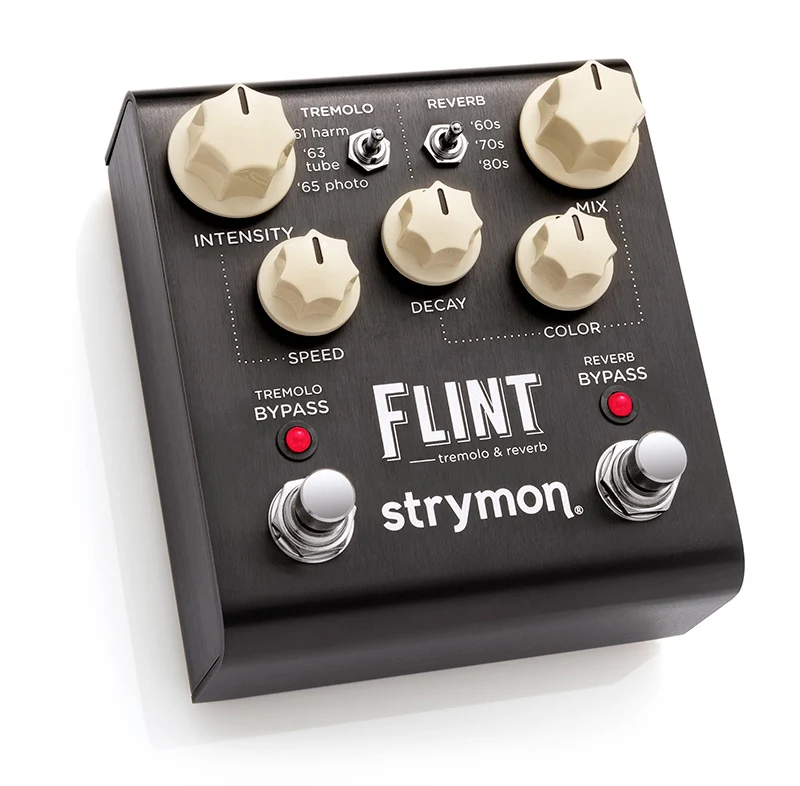

Flint is a studio-class effects pedal that delivers this classic combination. We carefully studied our favorite classic tremolo and reverb circuits, examined the sonic complexities and faithfully accounted for every detail in our hand-crafted algorithms. Flint is essentially two pedals in one, with tremolo on one half and reverb on the other.

From A Classic Era.

Flint gives you the pulsating, soothingly hypnotic effects pioneered in vintage amplifier tremolo circuits, along with three classic and completely unique reverb algorithms. On the tremolo side of the pedal you can choose between the sonically complex ’61 Harmonic Tremolo, the swampy and sultry ’63 Power Tube Tremolo, and the sharp and balanced ’65 Photocell Tremolo. On the reverb side you can select the classic ’60s Spring Tank Reverb, the inventive ’70s Electronic Plate Reverb, or the nostalgic ’80s Hall Rack Reverb.

With nine parameters to tweak, you get extensive control over the tremolo and reverb characteristics. Go from splashy, pulsing twang, to throbbing, swampy blues, all the way to ambient, trembling, and serene reverberated pads. Couple that with true bypass, and a premium quality analog front end and output section, and you have the history of tremolo and reverb in a pedalboard friendly format.

Vintage Sound, New Features.

Our second generation Flint gives you the same gorgeous tremolo and reverb sounds from our original and adds significant new features, incorporating technological advancements, hardware improvements and design enhancements to give you additional flexibility, power, and ease of use on stage and in the studio.

● Extended Control - Love slow tremolo? The Speed knob range has been expanded to slow the tremolo down to nearly 1Hz at its minimum setting. On the reverb side,

pre-delay time is now adjustable.

● MIDI - Full MIDI implementation means you can control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via El Flint’s EXP/MIDI jack or USB-C connection. Tremolo speed can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.
● Hardware Improvements - A premium analog JFET input circuit ensures superb responsiveness to your playing, and you can select mono or stereo input with the flick of a rear panel switch. All this, plus a new ARM DSP chip provides more processing power for every sonic nuance, with less energy consumption on your pedalboard.

Sound Design

‘61 Harmonic Tremolo

The ’61 Harmonic Tremolo is somewhat rare due to its very short period of availability in tube amplifiers in the early 1960s. It gets its signature sound through a dual-band filtering effect that alternately emphasizes low and high frequencies. The end result is a soothing pulse that has shades of a mild phaser effect combined with tremolo, due to the nature of the frequency bands that are alternated.

‘63 Tube Tremolo

The ’63 Power Tube Tremolo utilized the LFO signal to directly influence the power tube bias of the amplifier’s push-pull output stage. The power tubes are biased into lower and higher idle currents, creating the fluctuating gain that produces the tremolo effect. The effects of crossover distortion at low tremolo volumes, increased power tube harmonic distortion at maximum tremolo volumes, as well as the influence of power-supply sag, all add up to the boggy and dirty nature of this tremolo circuit.

‘65 Photocell Tremolo

The ’65 Photocell Tremolo is a faithful recreation of the classic photo-trem circuits found in mid-1960s American amplifiers. Those classic circuits used a light-dependent resistor (LDR) to attenuate the input signal, coupled with a miniature neon bulb that is connected to the LFO. As the LFO oscillates, the bulb gets brighter and dimmer which in turn varies the resistance of the LDR. The varying resistance works with other circuit impedances to change the signal level, which produces a characteristically “hard” sounding tremolo that moves between two levels, reminiscent of a square wave.

‘60s Spring Tank Reverb

'60s Spring Tank - The ’60s Spring Tank Reverb is our faithful recreation of the full-size two-spring tank that was commonly used in vintage amps. The two-spring tank uses spring segments of differing delay times, which adds to the complexity of the reverberated sound. Contributing greatly to the sound are the input and output tube circuits which convert the electrical guitar signal into a mechanical signal and then back to an electrical signal.

‘70s Electronic Plate Reverb

The ’70s Electronic Plate Reverb pays homage to one of the earliest digital reverbs ever created. The astounding hardware-based algorithm used multiple delay-lines configured in parallel, with each delay featuring multiple output taps and filtered feedback paths. The result is a rich, smooth reverb with a very quick build-up in density due to the summation of the many parallel output taps.

‘80s Hall Rack Reverb

The ’80s Hall Rack Reverb is our rendition of the now-nostalgic digital microprocessor rack reverbs from the late ’80s. The limited processing power of the day led to the implementation of efficient regenerative series loops of all-pass filters, delays, and low-pass filters. Modulating delay lines were used to increase the reverb density and add warmth. This reverb provides the signature sound of distinctive early reflections followed by the slowly-building density of the late reverberation.

Effect Order

Want to run your reverb intro tremolo like your favorite vintage tube amps did? Or do you prefer modulation before reverb for a cleaner, modern tone? Flint gives you options for both with an Effect Order secondary function that lets you choose exactly how you want your reverb and tremolo routed for ultimate tonal control. This setting is accessible as a Live Edit secondary function and is savable per-preset.

Pre-Delay

Pre-Delay controls the delay time before the reverberated signal appears, and is now accessible as a Live Edit secondary function, savable per-preset.

Features

MIDI

Our new generation of Flint features full MIDI implementation, allowing you to control just about every switch, knob, and setting remotely by sending MIDI commands from your controller or DAW via Flint’s EXP/MIDI jack or USB-C connection. Tremolo speed can be synchronized via MIDI Clock Sync, and the sync setting can be saved for each preset. 300 MIDI preset locations are available for loading and saving your favorite settings.

Remotely bypass or engage the pedal, sync tremolo speed changes along with your tracks, automate knob adjustments, recall unique presets for each song on your setlist — the possibilities with MIDI are limitless.

True & Buffered Bypass

Flint lets you choose electromechanical relay switched true bypass for a 100% untouched, unprocessed signal when the pedal is bypassed (this is the default setting), or you can opt for our premium quality buffered bypass that conditions your signal to preserve its integrity by preventing the high end roll-off that can happen due to longer cable runs.

JFET Input

Uncompromised dynamics and feel. Exceptional touch sensitivity and responsiveness. Flint feels just as good as it sounds, thanks to a high impedance ultra-low noise discrete Class A JFET preamp input.

Stereo In & Out

No need to make compromises when it comes to signal routing or pedal placement — Flint features full stereo in/out capabilities.

A single TRS input jack allows Flint to keep its compact form factor while giving you the option to use a stereo input signal. A dedicated rear panel Input switch allows you to easily set Flint for operation with a stereo (TRS) or mono (standard TS) input source. Low impedance dual TS output jacks let you use Flint as a stereo effect.

Line/Instrument Level

Pedals aren’t just for guitarists. Flint’s adjustable input signal level makes it a versatile tool for endless applications from the studio to the stage.

By setting Flint to line level input mode, you get 10dB of added headroom, allowing you to use Flint with bass guitars with active pickups, synthesizers, keyboards, effects loops, and more.

Boost/Cut

We all need a lift every once in a while. Flint features two dedicated +/-3dB boost/cut secondary functions, one for each side of Flint. This lets you add a little extra “oomph” when needed, or to dial things back a bit. The tremolo boost/cut ensures you can get the level you want with any tremolo depth and speed settings. The reverb boost/cut is useful for setting a solo boost when engaging the verb, or reducing level when using huge ambient pads.

Powerful New ARM Processor

Significant developments in mobile phones and computers have led to an evolution in technology that now allows our pedals to perform more simultaneous processes with less power draw than ever before. That means more processing power for every sonic nuance with less power consumption on your pedal board.

Controls & Routing TREMOLO TYPE

Switches between three tremolo types:

‘61 harm: harmonic band filtering that alternates low and high frequencies for a hypnotic effect

‘63 tube: a smooth volume pulsing created by modulating the bias point of the output tubes

‘65 photo: a sharper-edged volume effect achieved by using a photocell and light-dependent resistor

INTENSITY

Controls the intensity or depth of the tremolo effect.

SPEED

Adjusts the tremolo LFO frequency from slow to fast.

TREMOLO ON

Engages the TREMOLO. A red LED indicates the effect is engaged.

REVERB ON

Engages the REVERB. A red LED indicates the effect is engaged.

REVERB TYPE

Switches between three reverb types:
‘60s: full-size two-spring tank typical of those found on vintage guitar amps
‘70s: electronic plate that uses multi-tap parallel delay lines with filtered feedback paths ‘80s: studio digital microprocessor rack hall reverb with modulating delay lines

MIX

Controls the reverb wet mix from 100% dry at minimum to 100% wet with no dry signal at maximum. Set to 3 o’clock for 50/50 dry/ wet mix.

DECAY

Varies the reverb time. The ‘70s and ‘80s verbs approach ‘infinite’ decay at maximum.

COLOR

Varies the reverb tone from darker at low settings, to brighter at higher settings.

AUDIO INPUT SELECTOR

mono: Use with a mono input signal. Output is stereo.

stereo: Use with a stereo input signal. Output is stereo.

High impedance, ultra low-noise, discrete Class A JFET preamp input. TRS adapter cable required for stereo input signal.

OUTPUTS

Low impedance stereo audio signal outputs. Use OUT L for mono output.

EXP / MIDI

Multifunction communication jack for external control of Flint’s features and functions. Use a standard TRS expression pedal for continuous control over the knobs of the pedal (default setting). See complete User Manual for details about configuring for MIDI communication or accessories such as Strymon Conduit, MultiSwitch Plus, and MiniSwitch.

USB-C

Computer connection for controlling via MIDI and firmware updates.

9VDC

Use the included power supply or an adapter with the following rating: 9VDC, center negative, 300mA minimum.

Specs

Ins, Outs, and Switches

● High impedance ultra low-noise discrete Class A JFET TRS stereo input.
● Low impedance independent TS stereo outputs.
● Expression pedal input allows the connection of a TRS expression pedal, MiniSwitch,

MultiSwitch Plus, or TRS MIDI connection.
● USB jack for controlling via MIDI from a computer or for performing firmware updates.
● Dedicated Reverb On/Off & Tremolo On/Off footswitches

Audio Quality

● Premium JFET analog front end
● Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters provide

uncompromising audio quality
● 520MHz ARM Superscalar processor
● 32-bit floating point processing
● 20Hz to 20kHz frequency response
● Audio Input Impedance: 1M Ohm
● Audio Output Impedance: 100 Ohm

More

● Strong and lightweight anodized black aluminum chassis
● 9V DC power supply included
● Power requirements: maximum 9 volts DC center-negative, with a minimum of 300mA of

current.
● Dimensions:
4.5” deep x 4” wide x 1.75” tall
- 11.4cmdeepx10.2cmwidex4.4cmtall - Designed and built in the USA

Pedals

Strymon Flint Tremolo & Reverb V2

Strymon Ojai Compact High Current DC Pedal Power Supply

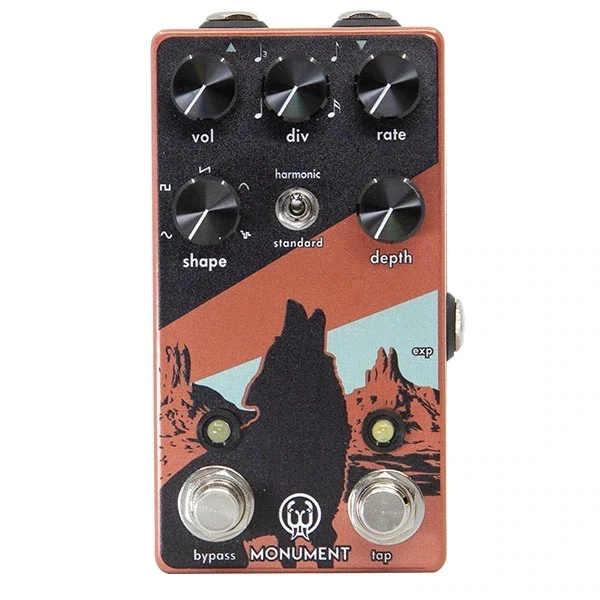

Walrus Audio Monument Harmonic Tap Tremolo V2

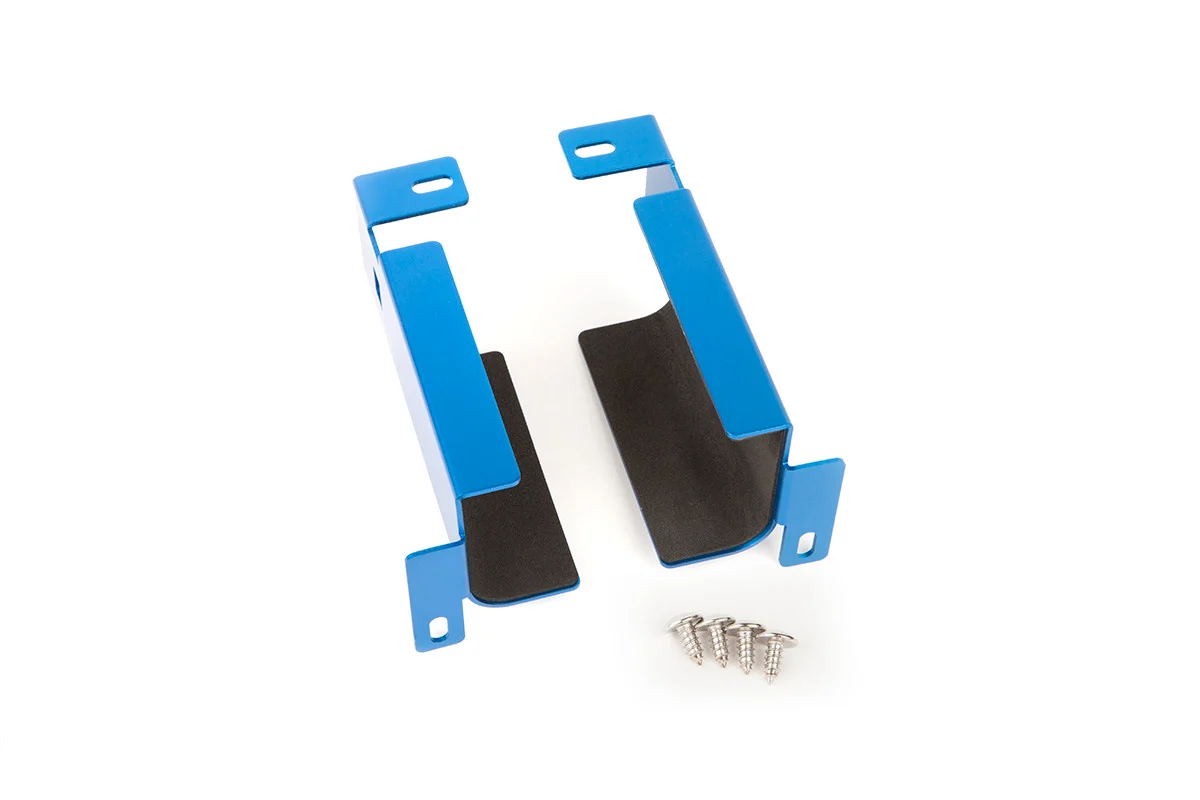

Strymon Zuma Power Supply Mounting Kit

Walrus Audio Canvas Tuner

Strymon UltraViolet

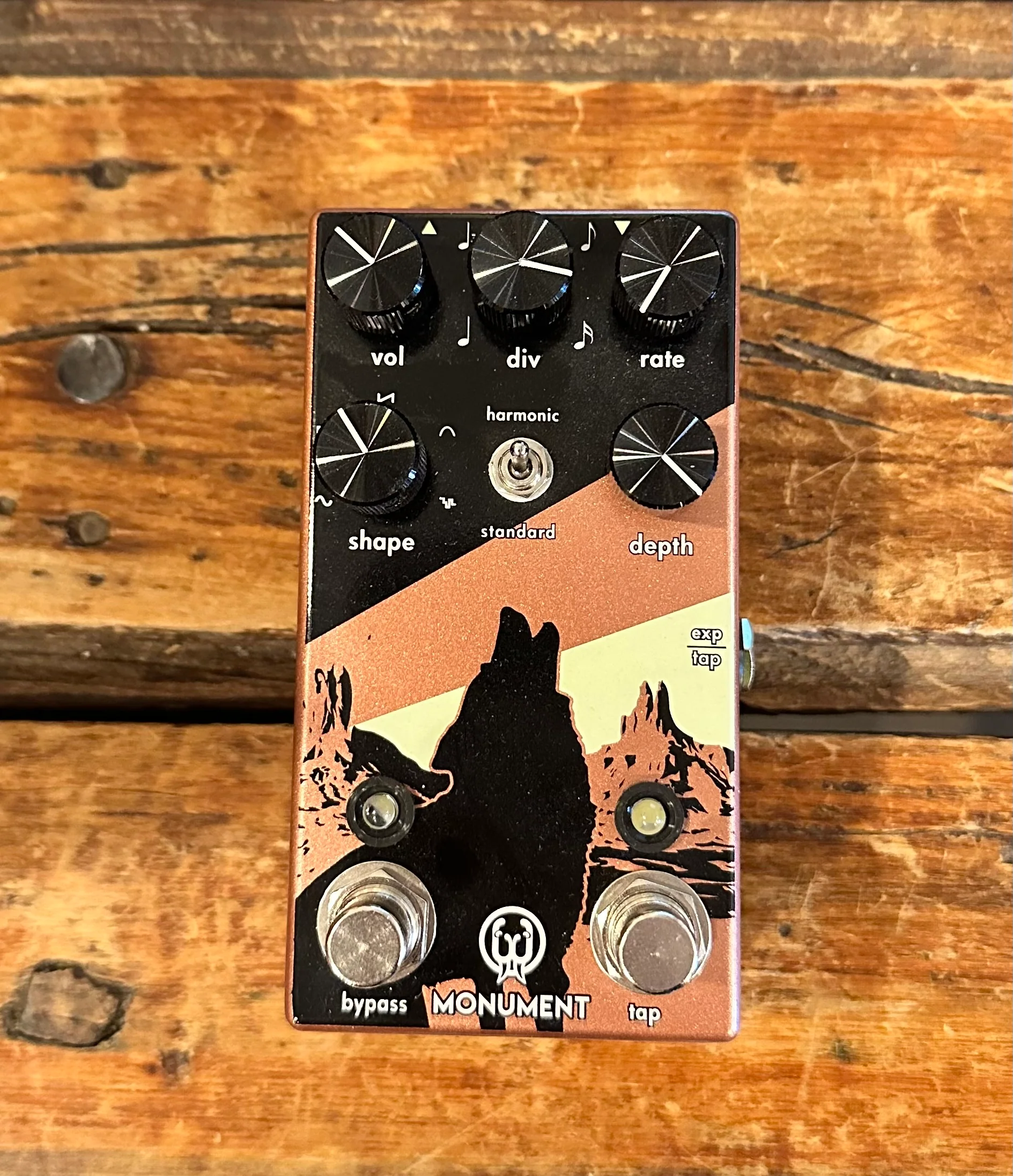

Walrus Audio Monument Harmonic Tap Tremolo Pedal V2 (Used)

Strymon Mini Switch

Vox V847 Wah Pedal

Mesa Boogie CLEO Overdrive Pedal

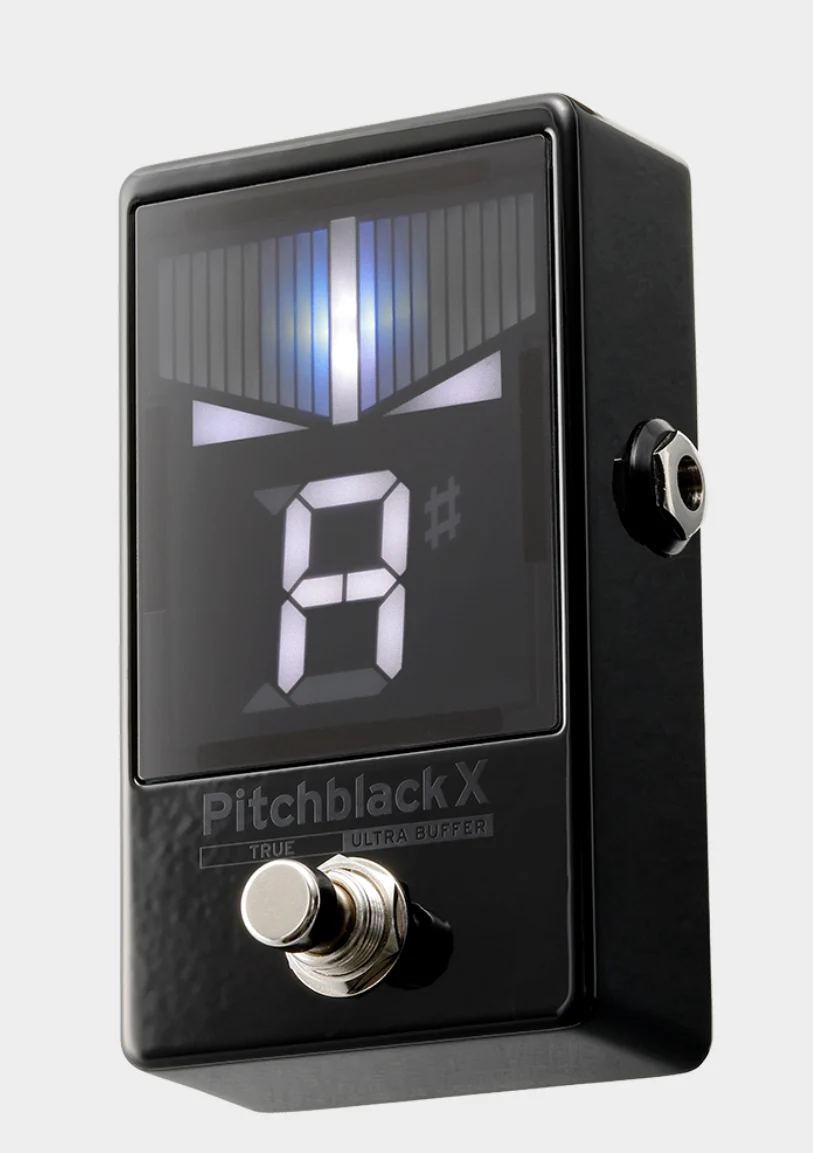

Korg Pitch black X Chromatic Pedal Tuner
